- Place of Origin: china
- Brand Name: doublecrane
- Model Number: MZLH-420

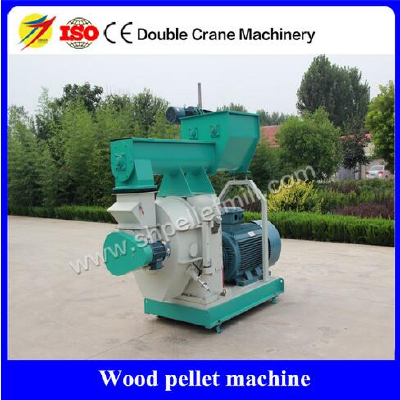

1 ton per hour wood chips palm kernel shell pellet mill machine made in China
MZLH-420 Ring Die Biomass Wood Pellet Mill Brief Introduction:
1.Main transmission is gear transmission with high precision and the ring die adopt the technology of quick-release and hoop type.So the efficiency is higher 20% than the belt transmission.
2.The transmission parts of the machine include bearing and oil seal,they are imported and high quality so as to ensure the transmission efficiency, stable, low noise.
3.Using the compensation type snake like spring coupling with high quality.It have the advantages of
novel structure, compact, safe, low fault etc.
4.The machine have special feeding mechanism,it can make the feeding evenly.It is special designed for
pressing various lightweight materials of 0.3-0.6g/cm3.
5.The machine is equipped with overload protection device to protect the equipment host.
6.The rotating speed of the feed auger is adjustable to meet various output.
7.The ring die is manufactured by advanced and high technologyalloy steel,so the life time is very long
and the wood pellet produced by this ring die have high quality and smooth apperance.
8.The machine have mould lifting device,it is convenient to replace the new mould for our customer.
- Place of Origin: china
- Brand Name: doublecrane
- Model Number: MZLH-420
MZLH-420 Ring Die Biomass Wood Pellet Mill Main Model:
Type | Main Power | Feeder Motor | Forced Feeding Motor | Ring Die Diameter | Production Capacity | Noise | Dimension |
MZLH 420 | 90kw | 2.2kw | 0.75kw | 420mm | 1-1.5t/h 6-8mm | ≤80dB (A) | 2.9*1.3*2.3m |
MZLH 508-1 | 110kw | 2.2kw | 1.5kw | 508mm | 1.2-1.5t/h 6-8mm | ≤80dB (A) | 3.05*1.35*2.45m |
MZLH 508-2 | 132 | 2.2kw | 1.5kw | 508mm | 1.4-1.8t/h 6-8mm | ≤80dB (A) | 3.05*1.35*2.45m |
MZLH 508-3 | 160 | 2.2kw | 1.5kw | 508mm | 1.5-2t/h 6-8mm | ≤80dB (A) | 3.05*1.35*2.45m |
