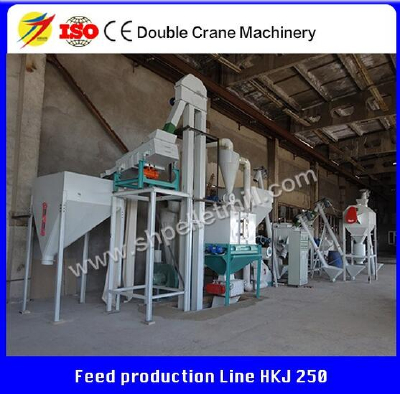

Complete animal pellet feed production line machine Pellet feed production line
♣. SH-250 Steam Boiler Pellet Feed Production Line Introduction:
This type feed pellet production line can process all kinds animal feed,such as corn,soybean, sorghum,grain,bone,fish and others,it is very suitable to produce pellet feed and premix/powder/ mash feed for chicken,duck,rabbit,pig,fish, shrimp,cattle,cow, sheep feed,etc.low invest with high return,by automatic batching system,easy to adjust feed formulation and feed material mix proportion.
♣. SH-250 Pellet Feed Production Line 1-1.5T/H Process:
Feed Hammer Mill---Feed Mixer---Feed Pellet Mill---Steam Boiler System---Pellet Cooler---Pellet Crumbler---Rotary Screen---and Automatic Packing System.
SH-250 feed pellet production line production capacity can be 1-1.5t/h,Hammer mill screener sieve size can be 2,4,6,8,10,12mm.Ring die feed pellet mill can produce feed pellet,diameter 1.5-6mm,pellet size can meet chick from 1day to 40 day,final feed particle size can be adjust according to customer demand.
- Place of Origin: china
- Brand Name: doublecrane
- Model Number: SH-250
All the model of the feed pellet machine:
Model | SH-250 | SH-320 | SH-350 | SH-420 | SH-508 | |||
Output(t/h) | 1-1.5 | 2-4 | 3-6 | 8-10 | 15 | |||
Main motor power (kw) | 22 | 37 | 55 | 110 | 132 | |||
Feeder power(kw) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | |||
Conditioner(kw) | 2.2 | 2.2 | 2.2 | 5.5 | 7.5 | |||
Ring die diameter(mm) | Φ250 | Φ 320 | Φ 350 | Φ 420 | Φ 508 | |||
Ring die width(mm) | 70 | 90 | 90 | 90 | 90 | |||
Roller number | 2 | 2 | 2 | 2 | 2 | |||
Roller diameter(mm) | Φ 103 | Φ 132 | Φ 160 | Φ 210 | Φ 248 | |||
Weight(t) | 1.2 | 2.1 | 2.6 | 3.3 | 4 | |||
Dimension(cm) | 155*130*140 | 215*78*174 | 250*100*200 | 330*110* 247 | 350*120*270 |
