SKJ350 500KG/H flat die wood pellet press/pellet machine/pellet mill

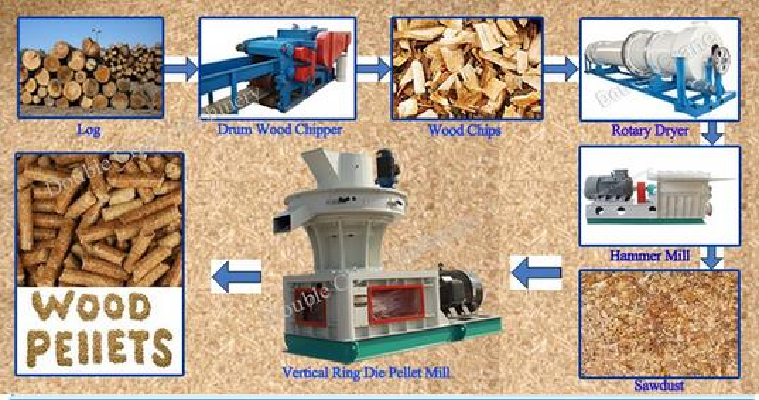

machine to make wood pellets
Machine to make wood pellets, wood pellet press machine have three type:vertical ring die wood pellet mill,flat die wood pellet mill,ring die wood pellet mill.
The small pellet machine is flat die wood pellet mill.It is widely used in small scale factory or household.The material is the wood sawdust, straw,other biomass sources.
◊ Flat Die Wood Pellet Machine is a special machinery equipment that making the material (wood waste,sawdust,corn stalks,peanut shells,straw,cotton,wood stalk,branches,mushroom waste,cow dung and other raw material) to high-quality and high-density pellets.These pellets have flammability.
◊ The pellet press machine roller shape is cone.Make its mold outside speed is consistent, Don't appear dislocation of the pressure wheel and the mould friction, reduce the resistance and reduce the kinetic energy loss, prolong the service life of the mould.
>> Working principle of flat die wood pellet mill
1.With centralized valve control system, the steam can be added reliably and easily.
2.With main drive and pressing chamber upgraded, the capacity and feed quality are both improved.
3.Feeding drum works at variable speed, feed adding cylinder on top of feeder prevents piling of feed and ensures even feeding.
4.Three-jacket conditioner or DDC conditioner, special paddle and steam adding system.
5.The cutting knife is made of high-speed tool steel or special alloy and about 2-3 mm thick.
- Place of Origin: china
- Brand Name: doublecrane
- Model Number: SKJ350
Model Number | Power (k w) | Size (mm) | Capacity (T/h) | Machine Size (mm) Weight (kg) |
SKJ350 |
22 |
1600*1220*1400 |
0.3-0.6 | L:1600,W:1250,H:1400, Weight:1600kg |
SKJ400 |
37 |
1750*1400*1600 |
0.4-0.7 | L:1750,W:1400,H:1600, Weight:1800kg |
SKJ450 |
45 |
1800*1700*1600 |
0.6-0.8 | L:1800,W:1700,H:1600, Weight:2100kg |

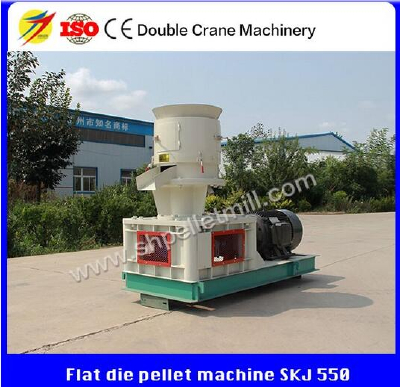

SKJ550 |
55 |
1700*850*1600 |
0.8-1.2 | L:1700,W:850,H:1600, Weight:2200kg |
